This is Master Electrician Practice Test 3 — Motors, Transformers & Industrial, covering the motor and industrial wiring topics that make up a large portion of the master electrician licensing exam. The test has 26 multiple-choice questions on motor branch circuit sizing, overload protection, feeder calculations, transformer overcurrent protection, separately derived systems, arc welders, industrial machinery, generators, and A/C compressor equipment. Pass score is 70%. Every question includes a full NEC 2023 explanation with the specific section that governs the answer.

TOPICS COVERED

Motors Transformers Grounding HVAC Circuits Welders

How this test works

Read each question carefully

Look for absolute words like always / never — they often distinguish the right answer.

Manage your time

You have 45 min for 26 questions. Skip tough ones and come back.

Progress is auto-saved

Your answers are saved locally — a page refresh won't lose your work.

Review your answers

After submitting you'll see every explanation and your NEC references.

Frequently Asked Questions

Yes — completely free with no signup required. All answers include detailed explanations.

Requirements vary by state but typically include 4–8 years of documented electrical work experience plus a valid Journeyman license.

Advanced NEC code interpretation, load calculations, service entrance design, motor controls, generator systems, and electrical system design.

The Master exam focuses more on design, calculations, and planning rather than installation details. Load calculation and service sizing questions are weighted heavily.

Before You Start

26 questions — multiple choice
45 minutes to finish (timer starts when you begin)
Pass score is 70% — you need at least 19 correct answers
Full NEC 2023 explanation shown for every question after you submit

Topics in This Test

Motor branch circuit conductor sizing at 125% of FLC (NEC 430.22)
Motor branch circuit OCPD sizing by motor type (NEC 430.52 and Table 430.52(C)(1))
Motor overload protection — sizing for continuous-duty motors (NEC 430.32(A)(1))
Motor feeder sizing when multiple motors share a feeder (NEC 430.24)
Three-phase motor full-load current tables (NEC Table 430.250)
Motor disconnect — visibility and accessibility requirements (NEC 430.102(B))
Motor disconnect ampere rating (NEC 430.110(A))
Transformer overcurrent protection — primary and secondary method (NEC 450.3(B))
Separately derived system grounding and bonding (NEC 250.30(A)(1))
Instantaneous-trip breaker exception for motor branch circuits (NEC 430.52(C)(1) Ex. 2)
A/C motor-compressor overload and branch circuit sizing (NEC 440.22(A))
Part-winding motor starting — secondary conductor sizing (NEC 430.23(A))
Arc welder primary conductor sizing (NEC 630.11(A))
Industrial machinery feeder and disconnecting means (NEC Article 670, 670.4(B))
Crane and hoist wiring methods (NEC Article 610)
Generator ampere rating and conductor sizing (NEC 445.13)
PV system interconnection point protection (NEC 705.12(B)(3))
Motor feeder OCPD sizing (NEC 430.62(A))

Tip: Know Table 430.52(C)(1) cold — it lists the maximum OCPD percentage by motor type (inverse-time: 250%, dual-element fuse: 175%, etc.). Many questions pivot on that table.

Questions

45 min

Time

70%

Pass

Timer starts immediately. Progress is auto-saved.

Master Electrician Practice Test - Motors, Transformers & Industrial — Question List

Question 1: A 460V, 3-phase motor runs at 28 amps full load. What is the smallest conductor ampacity you can use for its branch circuit?

28A — match the motor FLA exactly
32A — 115% of FLA
35A — 125% of FLA
42A — 150% of FLA

NEC Reference: NEC 430.22

Question 2: You are picking a breaker for a 230V, single-phase motor with 20A full-load current. Using an inverse-time breaker and Table 430.52, what is the biggest breaker you can use?

NEC Reference: NEC Table 430.52

Question 3: A motor nameplate shows FLA = 40A and service factor = 1.15. What is the highest trip setting allowed on the overload relay?

40A — match the FLA exactly
46A — 115% of FLA
50A — 125% of FLA
56A — 140% of FLA

NEC Reference: NEC 430.32(A)(1)

Question 4: Three motors share a feeder at 460V, 3-phase — 20HP (27A FLA), 15HP (21A FLA), and 10HP (14A FLA). What is the minimum ampacity for the feeder conductors?

62A — sum of all three motor FLAs
69A — 125% of largest plus sum of the rest
78A — 125% applied to the total FLA
88A — 125% of all three motors added together

NEC Reference: NEC 430.24

Question 5: When the motor nameplate is not available, which NEC table gives the full-load current for 3-phase AC induction motors?

Table 310.16
Table 430.248
Table 430.250
Table 430.52

NEC Reference: NEC Table 430.250

Question 6: A motor is in the basement and its disconnect is on the first floor where you cannot see the motor. What does the NEC allow in this situation?

A second disconnect must be installed at the motor
The disconnect must be capable of being locked in the open position
A warning label on the motor is sufficient
Nothing extra is needed as long as the disconnect is identified

NEC Reference: NEC 430.102(B)

Question 7: When picking a motor controller, what is the minimum current it must be rated to handle?

Full-load current only
Locked-rotor current only
Both full-load current and locked-rotor current
The available short-circuit current from the utility

NEC Reference: NEC 430.110(A)

Question 8: A 45 kVA, 480–208Y/120V transformer has both primary and secondary overcurrent protection. The primary current works out to about 93.75A. What is the maximum size primary OCPD?

100A
125A
225A
250A

NEC Reference: NEC 450.3(B)

Question 9: Same 45 kVA transformer (primary current = 93.75A), but now you use primary-only protection with no secondary OCPD. What is the maximum primary OCPD size?

100A
125A
150A
250A

NEC Reference: NEC 450.3(B)

Question 10: You install a 75 kVA, 480–208Y/120V transformer in a building. The secondary creates a separately derived system. Where should the main bonding jumper (system bond) be made?

At the transformer secondary terminals or at the first disconnect — but only one location
At the transformer and again at every subpanel fed from it
At the main service entrance of the building
No bonding is required on the secondary of a separately derived system

NEC Reference: NEC 250.30(A)(1)

Question 11: A motor with 25A FLA will not start on the 250% inverse-time breaker allowed by Table 430.52. Per 430.52, what is the absolute maximum breaker size you are allowed to install?

60A — next standard above the 250% value
80A — 300% of FLA
90A — next standard below the 400% ceiling
100A — 400% of FLA (the hard maximum)

NEC Reference: NEC 430.52(C)(1) Exception No. 2

Question 12: A central A/C condensing unit nameplate shows a branch-circuit selection current of 24A. What is the maximum overcurrent device allowed on its branch circuit?

NEC Reference: NEC 440.22(A)

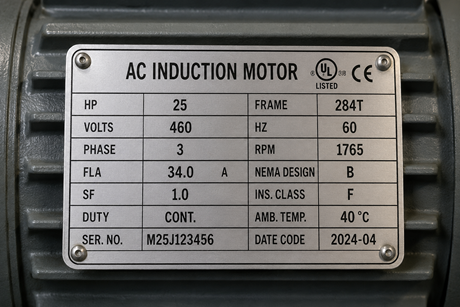

Question 13: The motor nameplate shown has the following data: 460V, 3-phase, 25HP, FLA = 34A, SF = 1.0. What is the minimum conductor ampacity for the branch circuit feeding this motor?

Motor nameplate showing 460V, 3-phase, 25HP, FLA 34A, SF 1.0

34A — use the nameplate FLA directly
39A — 115% of FLA
42.5A — 125% of FLA
51A — 150% of FLA

NEC Reference: NEC 430.22

Question 14: The secondary conductors from a wound-rotor motor to its controller are used for continuous-duty operation. They must be sized at what percentage of the motor rated secondary current?

100%
115%
125%
150%

NEC Reference: NEC 430.23(A)

Question 15: A motor nameplate shows FLA = 40A and temperature rise = 50°C. There is no service factor listed. What is the maximum overload relay setting allowed?

40A — use FLA with no multiplier
46A — 115% of FLA
50A — 125% of FLA
56A — 140% of FLA

NEC Reference: NEC 430.32(A)(1)

Question 16: A nonautomatic arc welder has a 60% duty cycle and primary current of 50A. Table 630.11(A) gives a multiplier of 0.78 for 60% duty cycle. What is the minimum branch circuit conductor ampacity?

33A — using a 0.65 factor
39A — 50A × 0.78
44A — 50A × 0.89 (80% factor)
50A — no duty cycle reduction

NEC Reference: NEC 630.11(A)

Question 17: The MCC diagram shows three motors: 50HP (65A FLA), 25HP (34A FLA), and 15HP (21A FLA), all at 460V, 3-phase. What is the minimum feeder conductor ampacity to this MCC?

Motor control center diagram showing three motors at 460V with FLA values labeled

120A — sum of all three FLAs with no multiplier
136A — 125% of largest plus sum of the rest
150A — 125% applied to the full sum
175A — 125% of each motor added separately

NEC Reference: NEC 430.24

Question 18: Which of the following is covered by Article 670 (Industrial Machinery)?

A residential HVAC unit
A CNC machining center with multiple motors on a single frame
A 200A commercial panel
A crane in a warehouse

NEC Reference: NEC Article 670

Question 19: An industrial machine nameplate says: 240V, 3-phase, supply current = 60A. What is the minimum conductor ampacity for the supply circuit to this machine?

60A — match the nameplate supply current
69A — 115% of supply current
75A — 125% of supply current
80A — next standard size above 60A

NEC Reference: NEC 670.4(B)

Question 20: Cranes and hoists are covered by which NEC article?

Article 430
Article 530
Article 610
Article 670

NEC Reference: NEC Article 610

Question 21: Per 445.13, the conductors running from a generator output terminals to the first overcurrent device must be sized at what percentage of the generator nameplate current rating?

100%
115%
125%
150%

NEC Reference: NEC 445.13

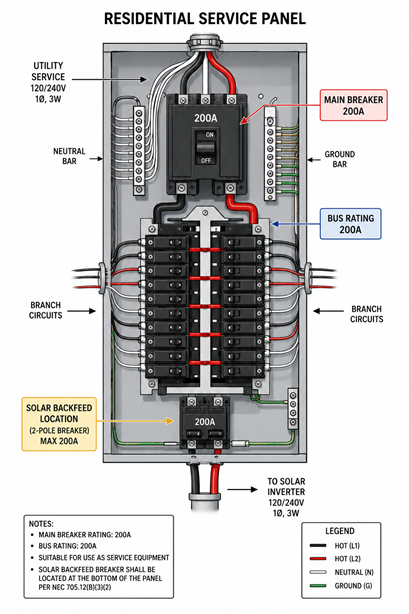

Question 22: The panel diagram shows a 200A main breaker and a 200A bus rating. A solar inverter will be connected at the bottom of the panel using the 120% rule in 705.12(B). What is the maximum size breaker for the solar inverter backfeed?

Residential panel diagram showing 200A main breaker and 200A bus rating with solar backfeed location at bottom

NEC Reference: NEC 705.12(B)(3)(2)

Question 23: A motor nameplate is stamped "Thermally Protected." What does this mean for external overload protection?

The motor still needs an external overload relay regardless
The motor has a built-in protector — no separate overload relay is required
Only GFCI protection is required instead of an overload relay
The thermal protection only covers short circuits, not overloads

NEC Reference: NEC 430.32(A)(2)(a)

Question 24: When sizing conductors for an air conditioning condensing unit, which current value do you use?

The FLA value from Table 430.250 based on the motor horsepower
The rated-load current or branch-circuit selection current from the equipment nameplate
The locked-rotor current divided by 6
The compressor horsepower × 1.5

NEC Reference: NEC 440.6

Question 25: A rooftop A/C unit disconnect is installed in the equipment room below — you cannot see the unit from the disconnect. What must you do to comply with 440.14?

The disconnect must be lockable in the open position per 110.25
A second disconnect must be installed on the roof next to the unit
Post a warning sign at the panel — no other action needed
Nothing extra is required as long as the disconnect is labeled

NEC Reference: NEC 440.14

Question 26: A feeder serves two motors. The 50HP motor has a 100A branch circuit breaker and the 25HP motor has a 60A branch circuit breaker. The 25HP motor FLA is 34A. What is the maximum feeder overcurrent device size?

100A — match the largest branch circuit breaker
125A — largest breaker plus other motor FLA, capped below 134A
150A — largest breaker plus other motor FLA rounded up
160A — sum of both branch circuit breakers

NEC Reference: NEC 430.62(A)

Key NEC References for This Test

Article	What It Covers
Art. 220	Load Calculations — optional and standard methods for multifamily
Art. 230	Services — service design, sizing, multiple disconnects
Art. 430	Motors — complete branch circuit design (conductor + OCPD + overload + disconnect)
Art. 445	Generators — standby systems, transfer switches
Art. 450	Transformers — sizing, primary/secondary OCPD, installation
Art. 706	Energy Storage Systems — battery/solar storage (major NEC 2026 expansion)

Study Tip: Practice transformer kVA calculations daily. Know the formula: I = kVA × 1000 ÷ (V × 1.732) for three-phase. This comes up on almost every master exam.
